Step 10: Turn the box (lid and body) to the desired shape as a unit. The design of the lid determines how long you can leave the tailstock in place. When do have to remove the tailstock, you will have to take lighter cuts. If the lid pops off when turning the tip, just stop the lathe and put it back on and try again with a light touch. If you can't get it to stay on, just tape it to the body with masking tape. Sand and apply a finish to the outside of the box.

figure 16: turn box and lid as unit

Step 11: To finish the bottom of the box you can use a "Jam Chuck" or use a trick I learned from Alan Lacer to finish the bottoms of bowls.

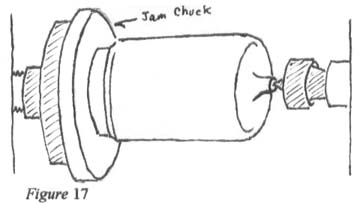

a) Jam Chuck method: To make a jam chuck, fasten a scrap piece of wood to a small faceplate and true it up on the lathe. Cut a shallow groove in the wood which will accommodate the lip of the box body. Put the lip of the box into the jam chuck groove and move the tailpiece into the center mark on the bottom. Then turn the bottom making it somewhat concave and leaving a small (as small as you feel comfortable) piece in the center where the tail center is attached (about 1/8"). Sand and apply a finish to the bottom of the box. Remove the box from the lathe, cut off the little piece of wood in the center of the bottom using a chisel (be careful not to cut yourself) and sand smooth. Add more finish to the bottom of the box.

figure 17: turn the bottom of box with jamb chuck

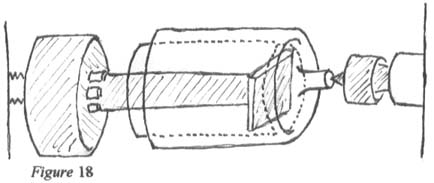

b) Method learned from Alan Lacer: I take a dowel that is almost as large as the inside of the box and glue a piece of rubber to the end. I then clamp it in place with the chuck, slide the box over the dowel so the inside bottom is against the rubber tip of the dowel. Then move the tailpiece into the center mark on the bottom and turn on the lathe to assure the box turns true. Now, turn the bottom making it somewhat concave and leaving a small (as small as you feel comfortable) piece in the center where the tail center is attached. Sand and apply a finish to the bottom of the box. Remove the box from the lathe, cut off the little piece of wood in the center of the bottom and sand smooth. Add more finish to the bottom of the box.
